SM50-200-C01-E6D Motion Platform
SMotion50 is a compact 6DOF motion platform with 50 kg payload, built for signal replication, testing, and outdoor use. Its rugged design and precise control suit space-limited, real-time applications.
30-min discovery · no commitment · response within 24h
Performance Specifications
| Velocity | Acceleration | Excursion (Single Axis) | Excursion (Multi Axis) | |
|---|---|---|---|---|
| Surge | ± 0.50 m/s | ± 5 m/s² | -0.16m | 0.18m | -0.21m | 0.22m |
| Sway | ± 0.50 m/s | ± 5 m/s² | -0.15m | 0.15m | -0.22m | 0.22m |
| Heave | ± 0.41 m/s | ± 6 m/s² | -0.13m | 0.12m | -0.13m | 0.12m |
| Roll | 50°/s | ± 400°/s² | -23.00° | 23.00° | -28.30° | 28.30° |
| Pitch | 50°/s | ± 400°/s² | -22.50° | 23.80° | -30.10° | 30.90° |
| Yaw | 53°/s | ± 500°/s² | -28.80° | 28.80° | -32.10° | 32.10° |
Applications
Form & Function
SMotion50 offers 6DOF motion capability in a compact mechanical structure, making it ideal for applications where space efficiency and responsiveness are essential. Its robust build and field-ready design ensure stable operation in constrained or mobile setups.
Core Capabilities
6 Degrees of Freedom
Allows for complex, multi-directional movement.
6 Electro-Mechanical Actuators
Ensures precise and reliable operation.
User-Friendly GUI
Simplified control via intuitive interface.
Real-Time Control
Facilitates immediate response and adjustment.
IMU-Based Motion Feedback
Accurate motion sensing with inertial feedback.
UDP-Based PC Communication
Ensures efficient data transmission.

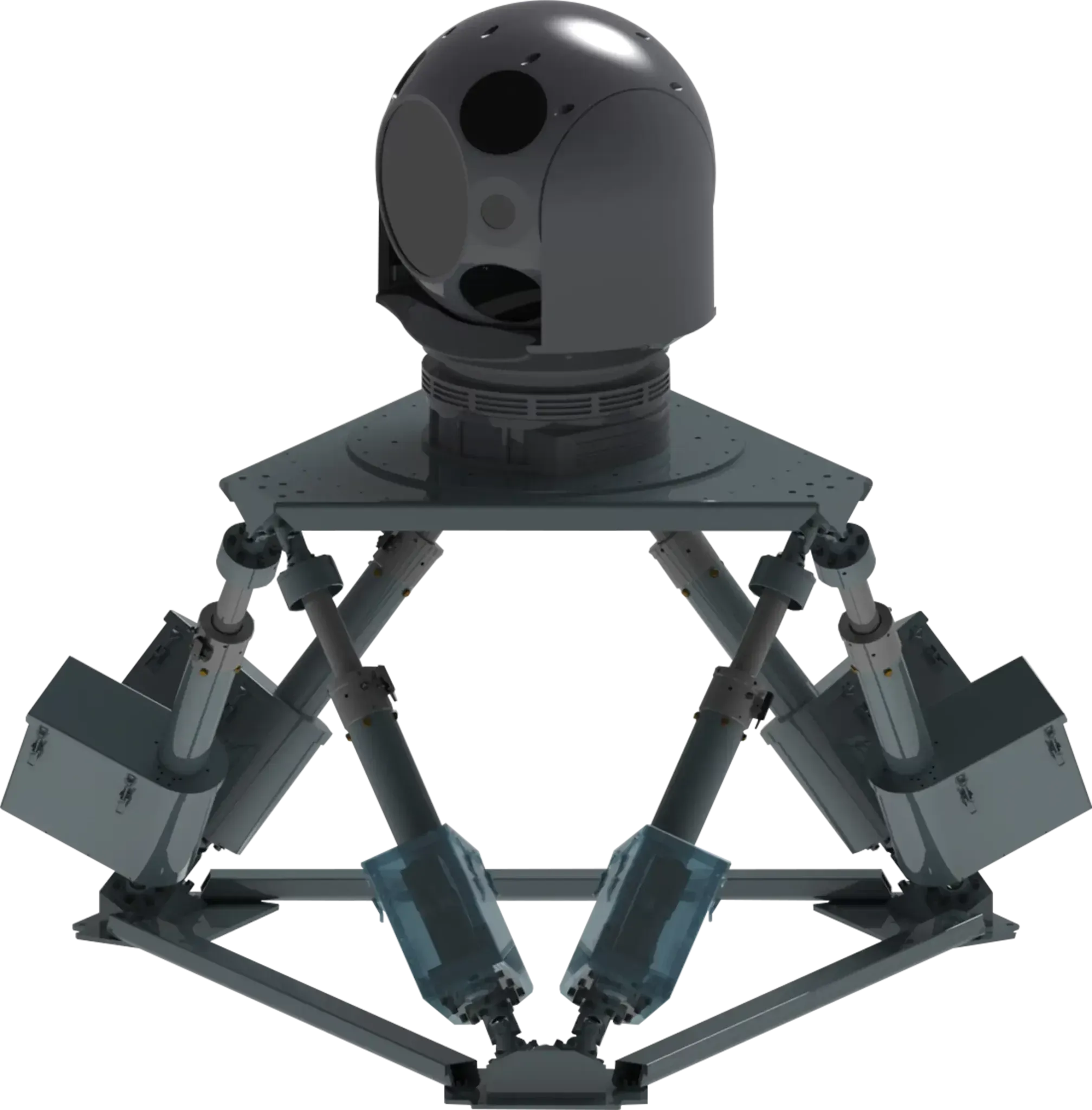

Outdoor Motion Platform
For outdoor applications, we offer the SMotion50 Outdoor variant, which includes all the features of the standard SMotion50 with additional protection and durability for harsh environments.
Retains all the performance features of the standard SMotion50, including surge, sway, heave, roll, pitch, and yaw capabilities, as well as acceleration and moment of inertia.
